Kempten, St. Mang (Chororgel)

Adresse: Sankt-Mang-Platz 1, 87435 Kempten (Allgäu)
Gebäude: Ev. Stadtkirche St. Mang
Weitere Orgeln: Hauptorgel, Chororgel

Die Karte wird geladen …

{"format":"leaflet","minzoom":false,"maxzoom":false,"limit":17000,"offset":0,"link":"all","sort":[""],"order":[],"headers":"show","mainlabel":"","intro":"","outro":"","searchlabel":"\u2026 weitere Ergebnisse","default":"","import-annotation":false,"width":"auto","height":"350px","centre":{"text":"","title":"","link":"","lat":47.725661,"lon":10.320094,"icon":""},"title":"","label":"","icon":"Organindex map icon.png","lines":[],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"zoom":18,"defzoom":14,"layers":["OpenStreetMap"],"image layers":[],"overlays":[],"resizable":false,"fullscreen":false,"scrollwheelzoom":false,"cluster":false,"clustermaxzoom":20,"clusterzoomonclick":true,"clustermaxradius":80,"clusterspiderfy":true,"geojson":"","clicktarget":"","showtitle":true,"hidenamespace":false,"template":"","userparam":"","activeicon":"","pagelabel":true,"ajaxcoordproperty":"","ajaxquery":"","locations":[{"text":"\u003Cb\u003E\u003Ca href=\"/index.php?title=Kempten,_St._Mang_(Chororgel)\" title=\"Kempten, St. Mang (Chororgel)\"\u003EKempten, St. Mang (Chororgel)\u003C/a\u003E\u003C/b\u003E","title":"Kempten, St. Mang (Chororgel)","link":"","lat":47.725661,"lon":10.320094,"icon":"/images/a/ac/Organindex_map_icon.png"}],"imageLayers":[]}

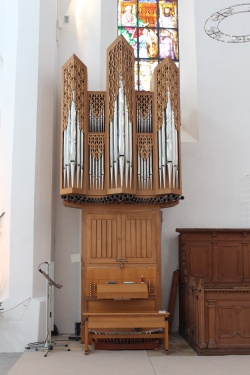

Prospekt

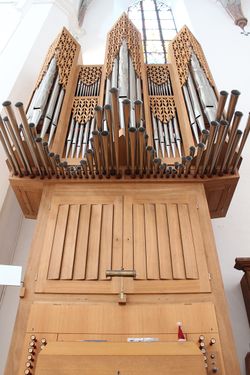

Prospekt

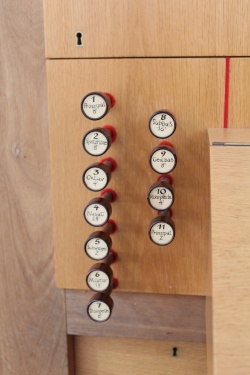

Manubrien links

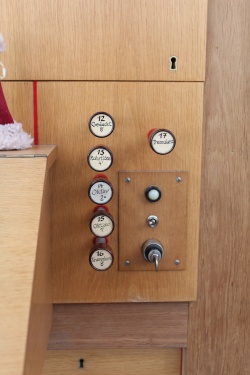

Manubrien rechts

Orgelbauer:	Gerhard Schmid, Kaufbeuren
Baujahr:	1973
Stimmtonhöhe:	a¹ = 440 Hz
Temperatur (Stimmung):	gleichstufig
Windladen:	Schleifladen
Spieltraktur:	mechanisch
Registertraktur:	mechanisch
Registeranzahl:	16 Register
Manuale:	2 Manuale, Tonumfang: C-g³
Pedal:	Tonumfang: C-f¹
Spielhilfen, Koppeln:	Normalkoppeln: II/I, I/Ped, II/Ped

Disposition

Hauptwerk	Brustwerk	Pedalwerk
Principal 8' Spitzflöte 8' Octav 4' Nasat 2 2/3' Schwiegel 2' Mixtur III-IV 1 1/3' Trompete 8'	Holzgedackt 8' Rohrflöte 4' Kleinpommer 2' Octav 1' Krummhorn 8' Tremulant	Subbaß 16' Gedacktbaß 8' Rohrpfeife 4' Principal 2'

Bibliographie

Literatur:	Brenninger, Orgeln in Schwaben, S. 160
Weblinks:	Homepage der Kirchengemeinde Website der Kirchenmusik an St. Mang, offensichtlich derzeit (7. Oktober 2013) nicht erreichbar
